Code for Drive Systems Magnetic Circuits and Materials

Introduction
Hysteresis Model
- Atomic Structure of Electric Grain Steel
Magnetic Field Lines

These are the code snippets used in Magnetic Circuits and Materials part of Drive Systems.

Introduction

The following code uses the standard matplotlib along with the custom ChalcedonPy which is detailed in its source code here.

The code is used primarily in the following code as a means to save figures for use in slides.

import matplotlib.pyplot as plt
import ChalcedonPy as cp

# Initialise ChalcedonPy
cp.init(save_path="Magnetic-Circuits-and-Materials",
        display_mode="web")

Hysteresis Model

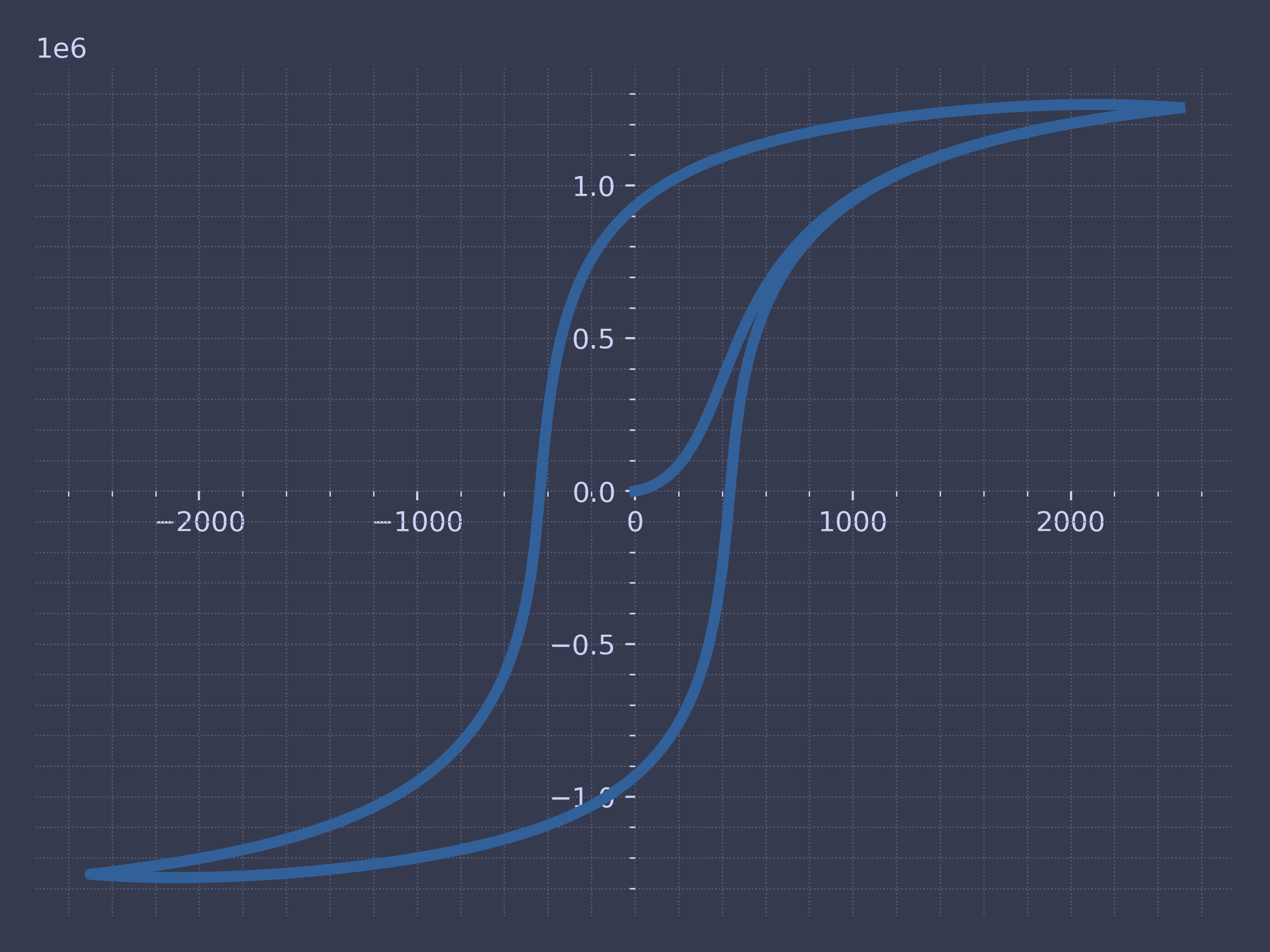

In electromagnetism and materials science, the Jiles–Atherton model of magnetic hysteresis was introduced in 1984 by David Jiles and D. L. Atherton. This is one of the most popular models of magnetic hysteresis. Its main advantage is the fact that this model enables connection with physical parameters of the magnetic material.

import numpy as np
from scipy.constants import mu_0

a = 470 # A/m
alpha = 9.38e-4
c = 0.0889
k = 483 # A/m
Ms = 1.48e6 # A/m

H = [0]
delta = [0]
Man = [0]
dMirrdH = [0]
Mirr = [0]
M = [0]

DeltaH = 20
Nfirst = 125
Ndown = 250
Nup = 250

for i in range(Nfirst):
    H.append(H[i] + DeltaH)

for i in range(Ndown):
    H.append(H[-1] - DeltaH)

for i in range(Nup):
    H.append(H[-1] + DeltaH)

delta = [0]
for i in range(len(H) - 1):
    if H[i + 1] > H[i]:
        delta.append(1)
    else:
        delta.append(-1)

def L(x):
    return (np.cosh(x) / np.sinh(x)) - (1 / x)

for i in range(Nfirst + Ndown + Nup):
    Man.append(Ms * (1 / np.tanh((H[i + 1] + alpha * M[i]) / a) - a / (H[i + 1] + alpha * M[i])))
    dMirrdH.append((Man[i+1] - M[i]) / (k * delta[i+1] - alpha * (Man[i + 1] - M[i])))
    Mirr.append(Mirr[i] + dMirrdH[i + 1] * (H[i+1] - H[i]))
    M.append(c * Man[i + 1] + (1 - c) * Mirr[i + 1])

# Plot the figure
fig = plt.figure()
ax = fig.add_subplot(1, 1, 1)

# Move left y-axis and bottom x-axis to centre, passing through (0,0)
ax.spines['left'].set_position('center')
ax.spines['bottom'].set_position('center')
plt.plot(H, M)

cp.store_fig("hysteresis-curve", close=True)

Atomic Structure of Electric Grain Steel

Electrical steel is speciality steel used in the cores of electromagnetic devices such as motors, generators, and transformers because it reduces power loss.

It is an iron alloy with silicon as the main additive element (instead of carbon). The exact formulation is tailored to produce specific magnetic properties:

small hysteresis area resulting in low power loss per cycle,
low core loss,
and high permeability.

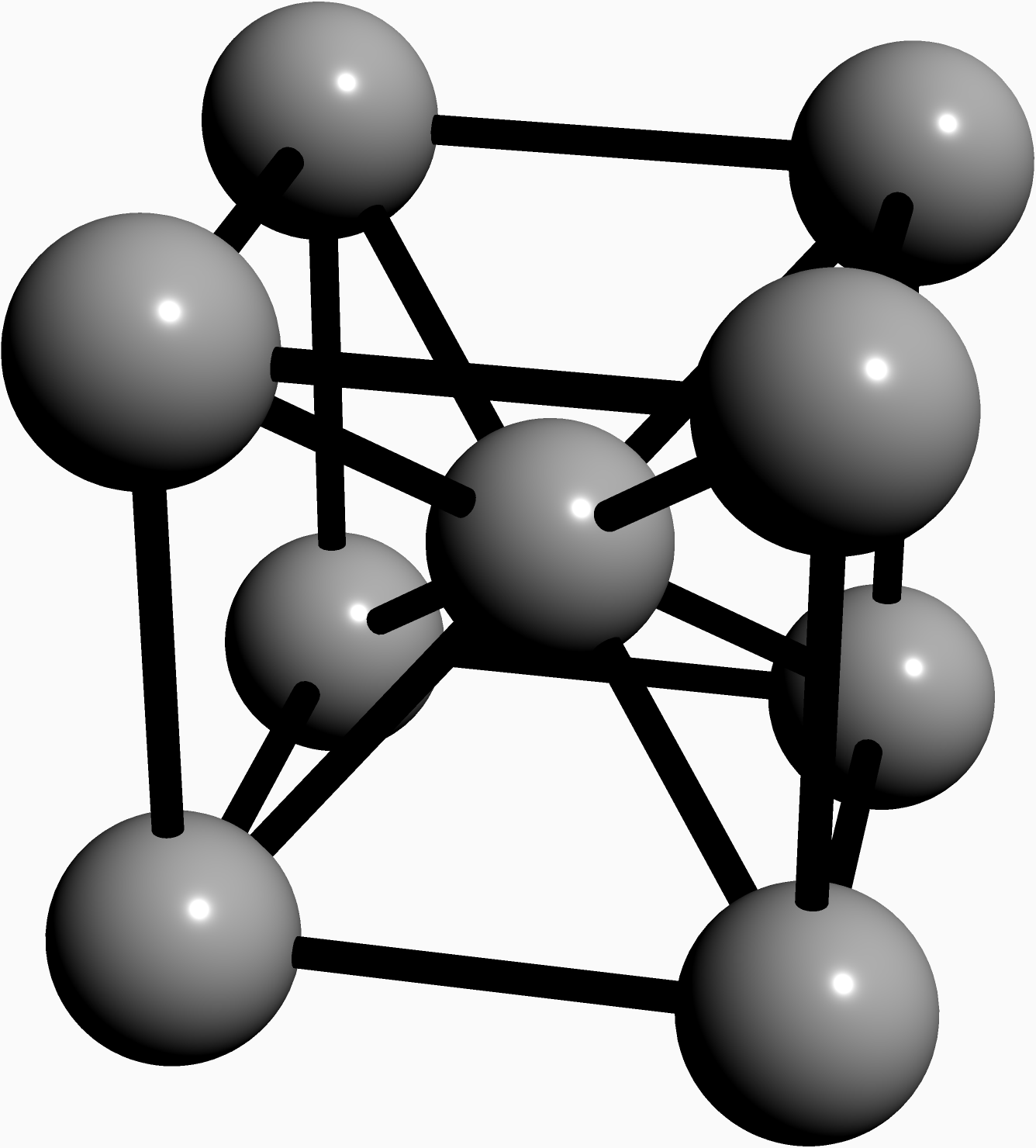

Below is the code for drawing the atomic structure of the electric grain steel.

settings.render = 4;
settings.outformat = "png";

import three;

currentprojection=perspective(200,-950,500);

pen Slide = RGB(250, 250, 250);
//pen Slide = RGB(54, 58, 79);
currentlight.background = Slide;

surface carbon=scale3(40)*unitsphere; // 70 pm
surface hydrogen=scale3(50)*unitsphere; // 25 pm

real alpha=90;

real CCbond=100; // 156 pm
real CHbond=150; // 110 pm

triple c1=(0,0,0);
triple c2=(200,0,0);
triple c3=(200,200,0);
triple c4=(0,200,0);

triple c5=(0,0,200);
triple c6=(200,0,200);
triple c7=(200,200,200);
triple c8=(0,200,200);

triple c9=(100,100,100);

pen Black=gray(0.7);

draw(shift(c1)*carbon,Black);
draw(shift(c2)*carbon,Black);
draw(shift(c3)*carbon,Black);
draw(shift(c4)*carbon,Black);

draw(shift(c5)*carbon,Black);
draw(shift(c6)*carbon,Black);
draw(shift(c7)*carbon,Black);
draw(shift(c8)*carbon,Black);

draw(shift(c9)*carbon,Black);

pen thick=linewidth(10);

draw(c1--c2--c3--c4--cycle,thick);
draw(c5--c6--c7--c8--cycle,thick);

draw(c1--c5, thick);
draw(c2--c6, thick);
draw(c3--c7, thick);
draw(c4--c8, thick);

draw(c1--c9, thick);
draw(c2--c9, thick);
draw(c3--c9, thick);
draw(c4--c9, thick);
draw(c5--c9, thick);
draw(c6--c9, thick);
draw(c7--c9, thick);
draw(c8--c9, thick);

settings.render = 2;
//settings.outformat = "png";
import tube;
import graph3;
size(10cm,0);
currentprojection=orthographic(2,4,2,zoom=1,center=true);

pen Slide = RGB(250, 250, 250);
currentlight.background = Slide;

real x(real t) {return .03*t;}
real y(real t) {return .5cos(t);}
real z(real t) {return .5sin(t);}
real tmin=0,tmax=40pi;
triple A=(x(tmin)-.5,y(tmin),z(tmin));
triple B=(x(tmax)+.5,y(tmax),z(tmax));
path3 p=A--graph(x,y,z,0,36pi,operator ..)--B;
path section=scale(.05)*unitcircle;

// Define a pen wich depends of a real t. t represent the "reltime" of the path3 p.
pen pen(real t){return brown+gray;}

// Here the section has colored segments (by default) depending to reltime.
draw(tube(p,coloredpath(section,pen)));

import pandas as pd
import numpy as np
import matplotlib.pyplot  as plt
from scipy.optimize import curve_fit

df = pd.read_csv('/Users/danielmcguiness/Downloads/plot-data(1).csv')

H=df["x"].to_numpy()
B=df["y"].to_numpy()

def sigmoid(x, L ,x0, k, b):
    y = L / (1 + np.exp(-k*(x-x0))) + b
    return (y)

p0 = [max(B), np.median(H),1,min(B)] # this is an mandatory initial guess

popt, pcov = curve_fit(sigmoid, H, B,p0, method='dogbox')



# set the title
plt.plot(H,B)
plt.plot(H,pcov, pcov, '-', label='s=0')
plt.show()
# show the plot
cp.store_fig("m-5-steel-magnetisation", close=True)

Magnetic Field Lines

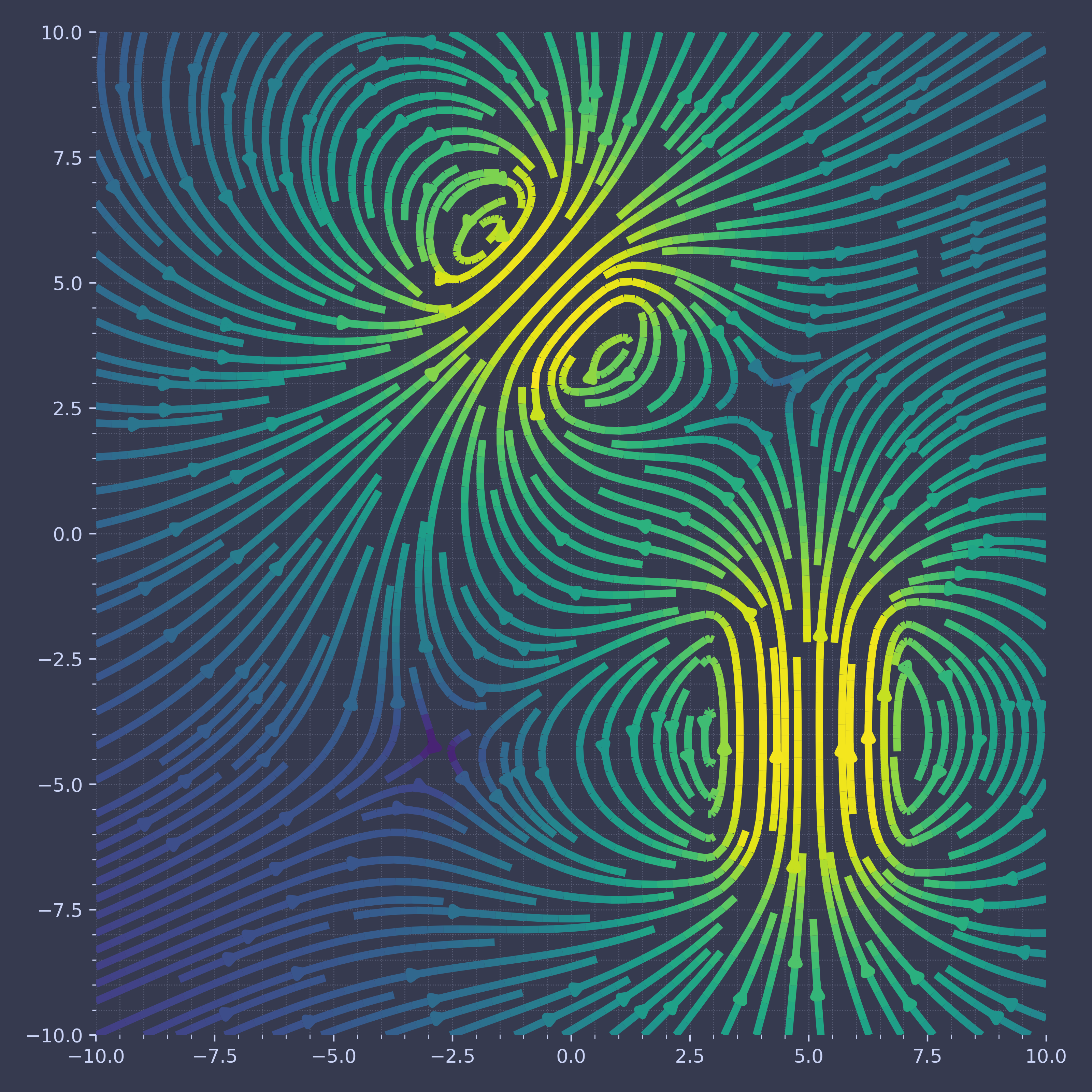

Magnetic Field lines ( $\vec{B}$ ) are the ways in which we describe the materials magnetic usability. The following code snippet and its output showcases the effect of having a material with high permeability compared to a magnetically inert material like air.

# imports
import numpy as np
import matplotlib.pyplot as plt
import magpylib as magpy

# create figure
fig = plt.figure(figsize=(8,8))
ax1 = fig.add_subplot(111)                   # this is a 2D-plotting-axis

# create magnets
s1 = magpy.source.magnet.Box(mag=[0,0,600],dim=[3,3,3],pos=[-4,0,3])
s2 = magpy.source.magnet.Cylinder(mag=[0,0,500], dim=[3,5])

# manipulate magnets
s1.rotate(45,[0,1,0],anchor=[0,0,0])
s2.move([5,0,-4])

# create collection
c = magpy.Collection(s1,s2)

# display system geometry on ax1
#magpy.displaySystem(c,subplotAx=ax1,suppress=True)

# calculate B-field on a grid
xs = np.linspace(-10,10,29)
zs = np.linspace(-10,10,29)
Bs = np.array([[c.getB([x,0,z]) for x in xs] for z in zs])

# display field in xz-plane using matplotlib
X,Z = np.meshgrid(xs,zs)
U,V = Bs[:,:,0], Bs[:,:,2]
ax1.streamplot(X, Z, U, V, color=np.log(U**2+V**2),density=2)


cp.store_fig("magnetic-field-lines", close=True)l
